JessEm Tool Company

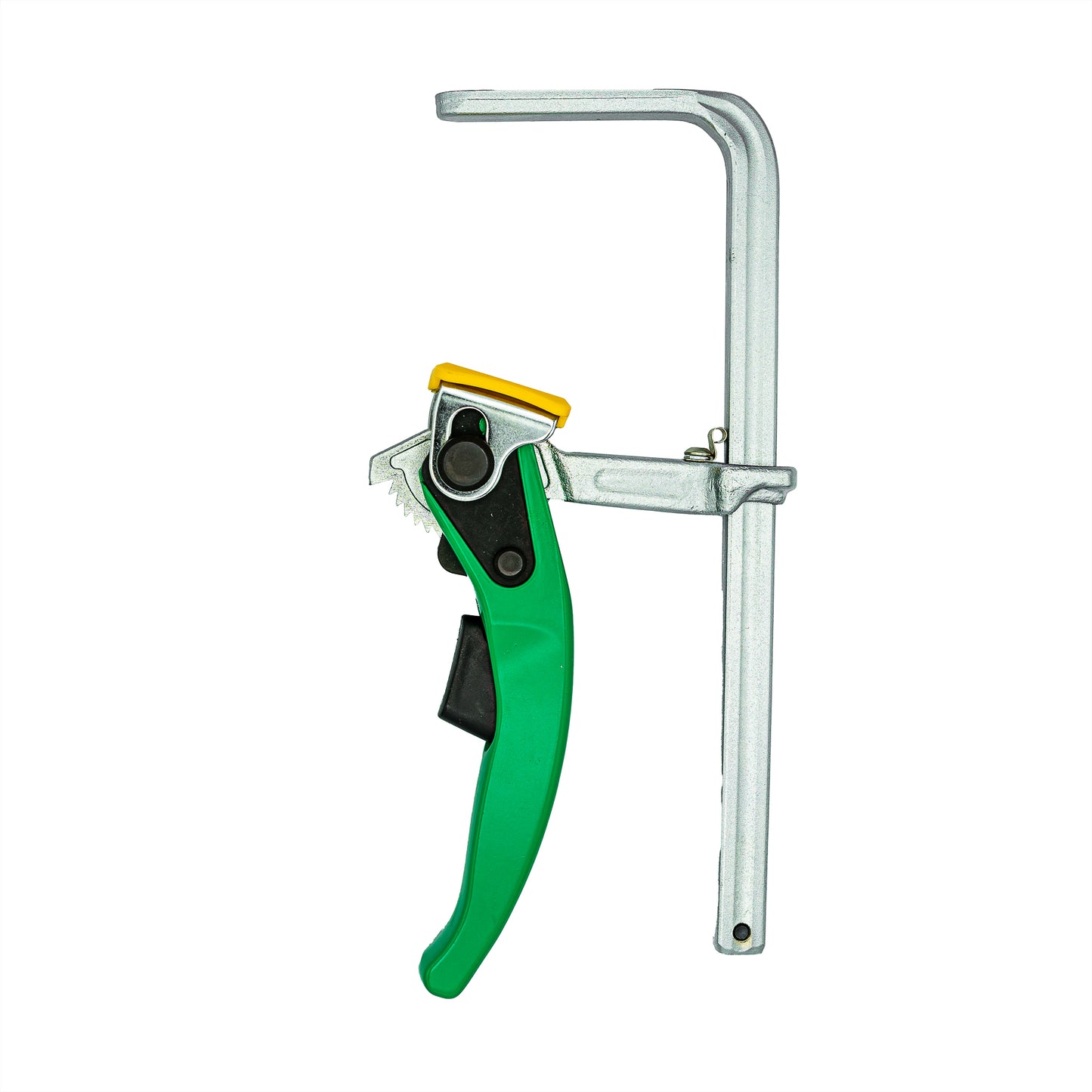

MicroJig MATCHFIT Dovetail Ratchet Clamp AP

SKU:

Regular price $55.00 CAD
Regular price Sale price $55.00 CAD
Sale Sold out

Most clamp arms are free to fall down when released forcing you to reset them every time you secure them, but not Microjig’s Ratchet Clamp. Our exclusive “Anti-Pivot” AP Spring holds the arm where you set it. Now you can release the pressure, move your stock, and reclamp without needing to adjust the arm, upside down or right side up.

The ratchet mechanism is fast acting; just adjust the arm so the pad in on the stock and pull the handle to set the hold. Every click increases the pressure. Then instantly open the clamp by pressing the release button.

The long ratchet handle provides superior leverage making them easy to use for everyone even those with hand grip issues. The positive lock of the ratchet mechanism resists loosening even under heavy vibration such as grinding or routing.

Features:

  • Exclusive AP Spring keeps the arm where you set it, even hanging upside down.
  • Fast-acting ratchet clamping in three simple steps.
  • Use anywhere you can mill the MatchFit Dovetail Groove.
  • Ratchet mechanism won’t vibrate loose when sanding or carving.
  • Large clamping face with molded cover to protect surfaces in use.



Specifications:

  • Clamp Throat Depth: 2-3/8"
  • Clamp Capacity: 0 to 5-1/4"
  • Clamp Pressure: 595 lb. open at 4"
  • Minimum Dovetail Slot Length: 3-3/4"
  • Dovetail Profile for Clamp: 1/2" x 14°

What's Included:

  • (1) Microjig - MATCHFIT Dovetail Ratchet Clamp AP

Notes:

  • To use, simply rout a 3/8" deep 1/2" x 14° dovetail slot in your fence or jig for infinite work holding possibilities.
  • For your biggest projects, build taller fences for table saws, bandsaws or router tables simply by routing two parallel grooves in a 1/2" or thicker panel.
DISCLAIMER - THIS INCLUDES THE CLAMPS ONLY. POCKET MILL PRO AND WORKSTATION NOT INCLUDED.
